Deep Excavation Example: 10ft Excavation - Cantilever Sheet Pile Wall
In this example we will design a cantilever sheet pile wall, supporting a 10 ft excavation. The model and analysis have been designed with DeepEX - Shoring Design Software.
A. Project Description
In this example we will design a cantilever sheet pile wall, supporting a 10 ft excavation. The Figure below presents the project model. Tables 1 and 2 present the soil properties and the stratigraphy respectively. Table 3 presents the external loads. Table 4 presents the wall properties. The general ground surface is at El. 0ft and the general water table is at El. -30 ft.
Figure: Project model.
Table 1: Soil properties.
Table 2: Stratigraphy.
Soil Layer | Elevation (ft) | OCR | Ko |
F | -0 | 1 | 0.577 |
C | -5 | 1 | 0.515 |
S1 | -18 | 1 | 0.47 |
S2 | -27 | 1 | 0.441 |
Table 3: External loads.
Load | Load Type | Start Point | End Point | Load Magnitude |
Load 1 | Strip Surcharge | (-51,0) | (-1,0) | 0.6 kips |
Table 4: Wall parameters.
| Left wall |
Sheet pile wall width | 1.25 ft |
Steel pile material | A 50 |
Sheet pile section | AZ 14 |
Wall length | 25 ft |
DeepEX Features
All software features and capabilities! Review all available design methods and analysis standards!
DeepEX Upgrades
We continue our research and we introduce new unique features that extend the software capabilities!
HoloDeepEX
Export and visualize 3D deep excavation models in Virtual and Augmented Reality! Impress your clients!
B. Modeling with DeepEX
The model will be created using the DeepEX Model Wizard:
Define Analysis Methods:
Figure: Analysis Methods in DeepEX Wizard.
In this dialog, we choose to apply Limit Equilibrium Analysis method to our model. For the classical earth pressures in design stages with multiple support levels we define FHWA apparent pressures and for the beam analysis we choose CALTRANS method.
Define project type and dimensions
Figure: Project Type and Dimensions in DeepEX Wizard.
In this dialog we select the project type. In this case we select the option to create an anchored model, though it will not make any difference, since we will design a cantilever excavation. Next, we define the project dimensions (final excavation depth, walls depth, excavation width, top of the wall elevation and water table).
Define soil types and stratigraphy
Figure: Soil Properties and Soil Layers in DeepEX Wizard.

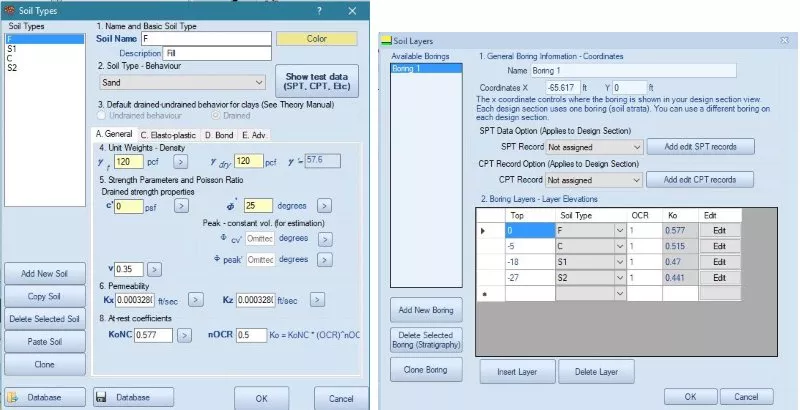

Figure: Soil Properties and Soil Layers dialogs in DeepEX.
In these dialogs we can define the required soil types and the properties for each created soil, as well as, the model stratigraphy by defining the top of the soil layer elevation and the soil type in each layer.
Define wall type and wall section properties
Figure: Wall types in DeepEX Wizard.
Figure: Wall Sections dialog in DeepEX.
In these dialogs we select the wall section type (in this case sheet pile wall), the sheet pile section, the wall spacing and the concrete – steel materials.
Define Stages
Figure: Support Elevations in DeepEX Wizard.
In this dialog, we select the option to create a cantilever excavation.
Define Surcharge
Figure: Support Elevations in DeepEX Wizard.
In this dialog we define the surcharge type and properties, as well as the surcharge modeling options. In this case we will use a 0.6 kips strip surcharge, developed for 50 ft, starting 1ft behind the left wall. After the model is automatically generated by the software wizard, we can access the stages in the model area and add any required additional loads graphically, using the Draw Loads options in the General tab of DeepEX.
Define structural codes:
Figure: Structural Codes in DeepEX Wizard.
In this dialog, we can define the structural and geotechnical design codes that we wish to assign to this model. In this case, we will use US allowable settings for steel design and ACI for concrete.
The software automatically creates all project construction stages, according to our selections in the Model Wizard. The following Figures present the models in Stages 0 and 1 respectively:

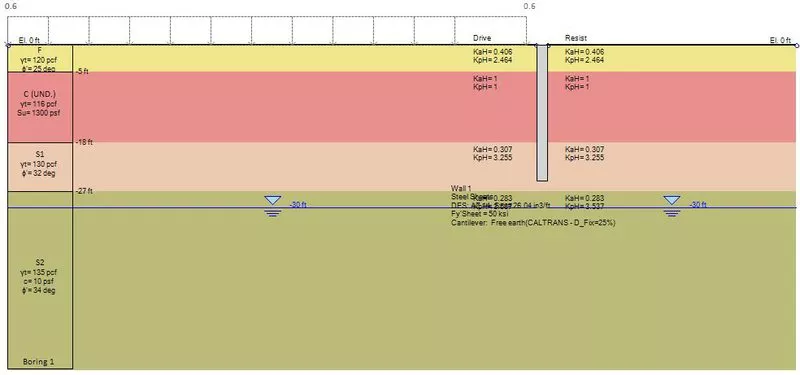

Figure: Generated Model – Stage 0.

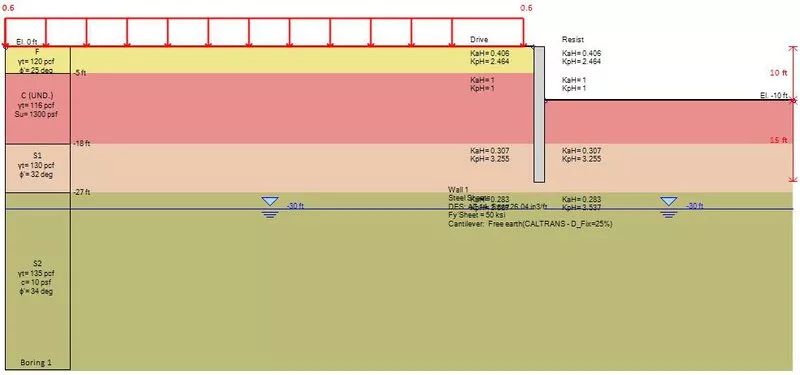

Figure: Generated Model – Stage 1.
Additional Modules
Additional modules are available! Customize your DeepEX version based on your project needs!
Training Videos
DeepEX can design and optimize any deep excavation in minutes! Review our professional training videos!
Design Methods
Several design methods for the wall beam analysis and various geotechnical standards are implemented!
C. Cantilever Excavation Analysis and Results
Since the model is ready, we can choose to calculate the design section, pressing on the button
After the analysis is succeeded, the Summary table appears. The table below includes some critical checks and values for each construction stage. The following figures present some graphical results from the results tab of DeepEX.
Table: DeepEX critical results/stage
Figure: Wall moment and shear diagrams, Stage 1.
Figure: Wall deflections and soil pressures diagrams, Stage 1.
Figure: Wall embedment safety factors, Stage 1.
